Features of Cluster Orchestrator

Last updated: 01 Sept 2025

Orchestrator Configuration Features​

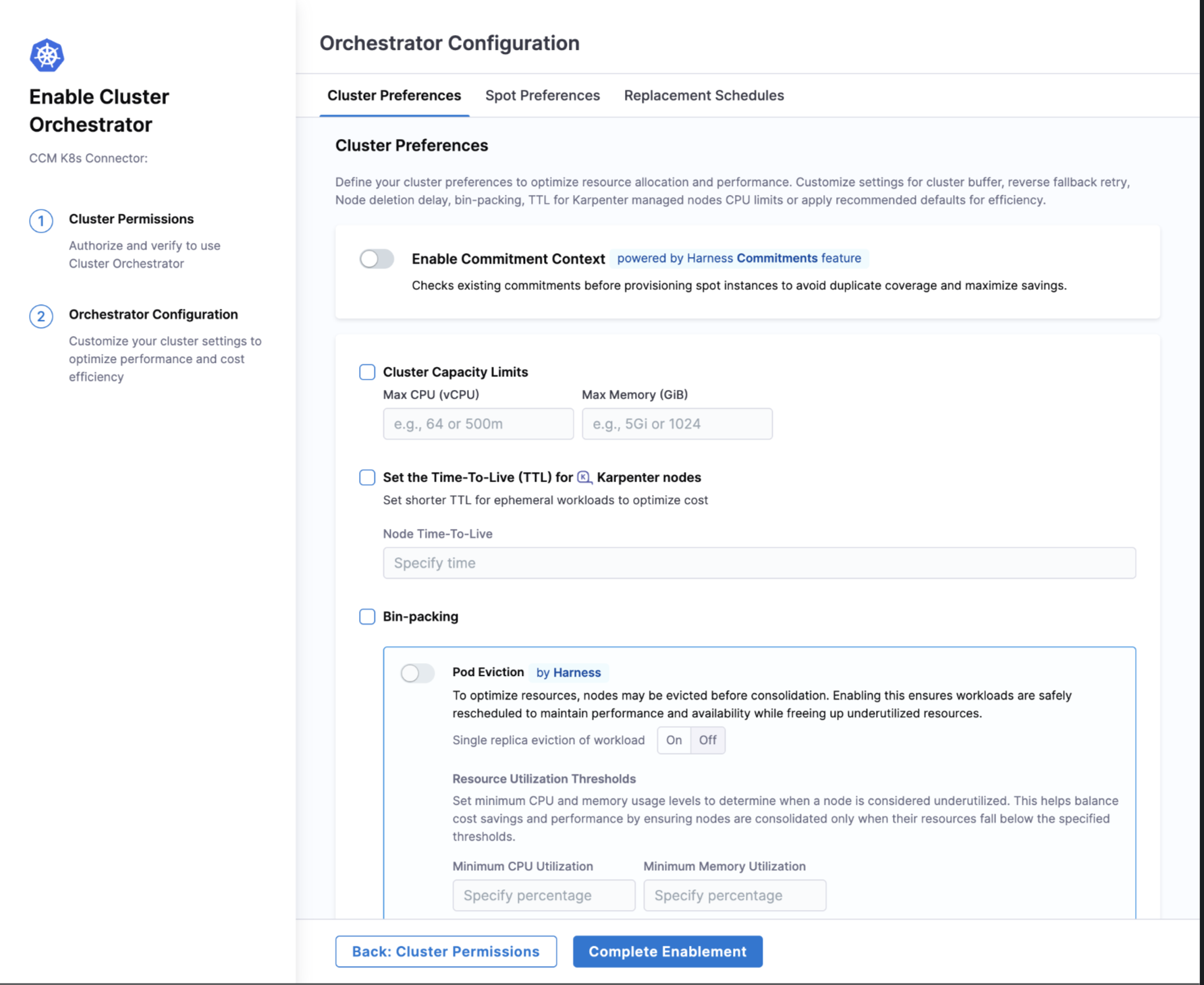

When enabling Cluster Orchestrator, you can configure various settings under the Orchestrator Configuration section:

  • Enable Commitment Context (Integration with Commitment Orchestrator): Select the Master Account from your connector dropdown to leverage existing commitments. When enabled, Cluster Orchestrator intelligently checks for unused commitments and prioritizes them over spot instances, preventing duplicate coverage and maximizing your cloud investment. This integration ensures optimal utilization of pre-purchased compute capacity before provisioning additional resources.

  • Set the Time-To-Live (TTL) for Karpenter nodes: Set the Time-To-Live (TTL) for Karpenter nodes to ensure that nodes are automatically terminated after a specified period of inactivity.

  • Cluster Capacity Limits: Cluster Capacity Limits restrict the maximum resources a cluster per nodepool can scale up to. This prevents scenarios where configuration errors or unexpected behavior could result in uncontrolled node provisioning. When configured, Cluster Capacity Limits enforce limits on:

    • Maximum vCPUs (cores) – defines the total CPU capacity the cluster Nodepool can scale up to.

    • Maximum Memory (GiB) – defines the total memory capacity the cluster Nodepool can scale up to.

      If, Karpenter Nodepools Already have limits configured, when new nodepools (spot/ondemand) are created out of the existing karpenter nodepools, the limits configuration will be copied over. If the limits are configured on the cluster level, then the limits will be copied over to all nodepools which does not have a limit set explicitly in the default nodepool. If limits are not set on Cluster Config/Default Nodepool, then a default limit will be calculated by cluster orchestrator with the following equation and will be applied on all the nodepools managed by Harness:

      cpu = total cpu available in the cluster * 2
      memory = total memory available in the cluster * 2

  • Bin-Packing: Bin-packing is a resource optimization technique that Cluster Orchestrator uses to efficiently distribute workloads across your Kubernetes cluster. The goal is to maximize resource utilization by consolidating workloads onto fewer nodes, allowing underutilized nodes to be safely removed from the cluster.

    • Pod Eviction By Harness: To optimize resources, nodes may be evicted before consolidation. Enabling this ensures workloads are safely rescheduled to maintain performance and availability while freeing up underutilized resources.

      • Single replica eviction of workload: Can be set to On or Off

      • Resource Utilization Thresholds: Set minimum CPU and memory usage levels to determine when a node is considered underutilized. This helps balance cost savings and performance by ensuring nodes are consolidated only when their resources fall below the specified thresholds.

      • Bin Packing Supports Robust Distribution Mode from 0.5.1: Robust Distribution Mode is an enhancement to the default Cluster Orchestrator scheduling flow which gets automatically enabled when bin packing is enabled. With Bin Packing enabled, the orchestrator enforces the configured spot/on-demand distribution more effectively. It identifies pods that violate distribution rules due to configuration changes or missing tolerations. Using the Kubernetes Descheduler's policy RemovePodsViolatingNodeTaints, it automatically evicts pods from incompatible nodes and reschedules them to nodes that match your configured distribution.

    • Node Disruption Using Karpenter: Activate Karpenter's node disruption management to optimize resource utilization and maintain application stability. Toggalable Options:

    • Node Deletion Criteria: Choose when nodes should be targeted for removal:

      • Empty: Only nodes with no running pods will be removed
      • Underutilized: Nodes that fall below your defined CPU and memory thresholds will be consolidated

    • Node Deletion Delay: This setting controls how long a node should remain in the cluster after becoming empty before it's deleted. You can specify a time period (e.g., 10 minutes) after which nodes with no pods will be deleted.

    • Disruption Budgets: Manage node consolidation by specifying limits on allowed disruptions as a percentage or a fixed number.Disruption budgets provide a safety mechanism to prevent excessive node terminations that could impact application availability. For each disruption budget, you can:

      • Select reason: Drifted, Underutilized, Empty
      • Allowed node disruptions: Specify percentage or number of nodes
      • Budget scheduling: When a budget begins being active. It can be set to be: (hourly, midnight, daily, weekly, monthly or annually) and Active duration (Specifies how long the budget remains active)

  • Spot to Spot Consolidation: Automatically switch workloads between spot instance types when cheaper options become available to maximize cost savings while maintaining performance requirements for your cluster.

important
  • If Node Deletion Delay or Bin Packing is not set, the cluster won't scale down.
